Ob sab npab Silicone Planetary Tov Khoom

Ob sab caj npab silicone planetary tov khoom yog ib yam tshiab ntawm kev sib tov thiab dispersing khoom, uas yog haum rau txhua yam ntawm high viscosity thiab siab cov ntaub ntawv (1000-1000000cps).

Xa kev nug

Hauj lwm lawm

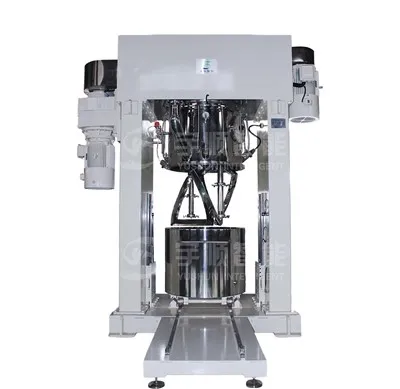

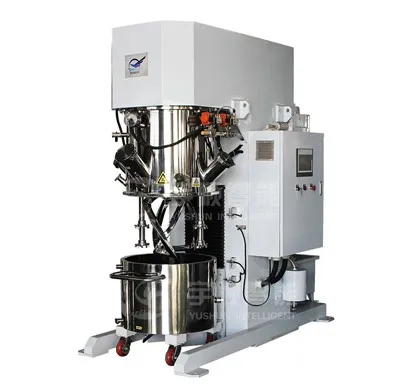

Silicone Sealant Ob Chav Planetary Tov Khoom

Ob sab caj npab silicone planetary tov khoom yog ib yam tshiab ntawm kev sib tov thiab dispersing khoom, uas yog haum rau txhua yam ntawm high viscosity thiab siab cov ntaub ntawv (1000-1000000cps). Ob chav caj npab planetary tov khoom muaj ob twist paddles / multi-layer paddles / lwm yam stirring paddles thiab ob dispersing shafts nyob rau hauv lub stirring tank, ib los yog ob phab ntsa scrapers. Lub agitator ntawm ob sab caj npab planetary tov khoom tig ntawm kev kub ceev thaum tig ib ncig ntawm lub axis ntawm lub hwj chim lub cev, yog li ntawd cov khoom nyob rau hauv lub hwj chim lub cev yog raug rau muaj zog shearing, dispersion thiab kneading, ua nws efficiency ob peb zaug ntawm dog dig mixers. Ob sab caj npab silicone planetary tov khoom tuaj yeem nruab nrog ntau yam sib xyaw paddles nrog cov haujlwm sib txawv raws li hauv qab no.

Rau kev ntsuam xyuas qhov sib xyaw thiab cuam tshuam, Yushun kuj tuaj yeem muab lub ntiaj teb sib tov 20 litre thiab 10 litre tov khoom raws li hauv qab no.

10 litre tov khoom nrog hydraulic xovxwm tshuab

Planetary tov khoom 20 liter

Technical Parameters

tems↓ Qauv →	2L	5L	10L	15L	30L
Tank ua haujlwm Muaj peev xwm / L	2L	5L	10L	15L	30L
Tank Design Loj / L	3L	7.4L	14L	18L	44L
Tank Loj / mm	180*120	250*150	300*200	300*250	400*350
Revolution Tsav / Kw	0.75	1.5	2.2	2.2	3
Kev hloov pauv ceev / rpm	0-51	0-51	0-48	0-48	0-43
Mix Ceev/rpm	0-112	0-104	0-100	0-100	0-84
Disperse Motom/Kw	0.75	1.5	2.2	2.2	5.5
Disperse Ceev / rpm	0-9500	0-9500	0-7000	0-7000	0-5500
Disperse phaj linear Velocity(m/s)	0-23	0-23	0-23	0-23	0-23
Qhov hnyav / Kg	303	420	550	570	980
tems↓ Qauv →	60L	100L	200L	500L	1000L
Tank ua haujlwm Muaj peev xwm / L	60L	100L	200L	500L	1000L
Tank Design Loj / L	88L	149L	287L	670L	1327L
Tank Loj / mm	500*450	650*450	750*650	1000*850	1300*1000
Revolution Tsav / Kw	7.5	11	22	45	55
Kev hloov pauv ceev / rpm	0-36	0-30	0-28	0-22	0-20
Mix Ceev/rpm	0-53	0-46	0-39	0-35	0-36
Disperse Motom/Kw	11	15	30	55	75
Disperse Ceev / rpm	0-4500	0-3700	0-2800	0-2000	0-1800
Disperse phaj linear Velocity(m/s)	0-23	0-23	0-23	0-23	0-23
Qhov hnyav / Kg	1700	2700	4200	10000	13500
Kev ntsuas / hli (L * W * H)	195012002150	230013002400	250014003000	360019503900	430019505000

Qhov zoo ntawm Peb Lub Tuam Txhab

1. 25 xyoo Specializing nyob rau hauv cov khoom siv tshuaj Manufacturing, ntub sib tsoo tshuab thiab sib tov tshuab, pab ntau tshaj 1000 tuam txhab uas muag los ntawm lub ntiaj teb no.

2. Tshaj li 10-xyoo kev paub txog engineers muab ON-SITE kev teeb tsa kev taw qhia thiab kev txhawb nqa thev naus laus zis thaum lub neej ntawm lub tshuab.

3. Nrog ISO 9001: 2008 Kev Tswj Xyuas Kev Tswj Xyuas Zoo tau pom zoo, kev tswj hwm nruj tshaj plaws npog txhua txhua kauj ruam ntawm kev tsim khoom, suav nrog ua tib zoo tshuaj xyuas cov khoom siv raw, kev ua haujlwm tau zoo thiab kev sim tshuab.

Tswv yim

Yog tias koj xav xaiv lub tshuab sib xyaw kom haum lossis lub tshuab sib tsoo, pls hu rau tus kws tshaj lij muag khoom kom paub meej cov lus hais thiab tsis muaj.
