Ntsia Hlau Lift Adhesive Mixing Planetary Tov Khoom
Qinhuangdao Yunshun yog lub Hoobkas ntawm kev sib xyaw tshuab hauv Suav teb, uas muaj ntau tshaj 25 xyoo kev paub. Zoo siab paub tias koj tab tom cuam tshuam nrog Sealants / Adhesives / Glue ua lag luam, tej zaum yuav xav tau ntawm dispersing mixing tshuab.
Hauj lwm lawm

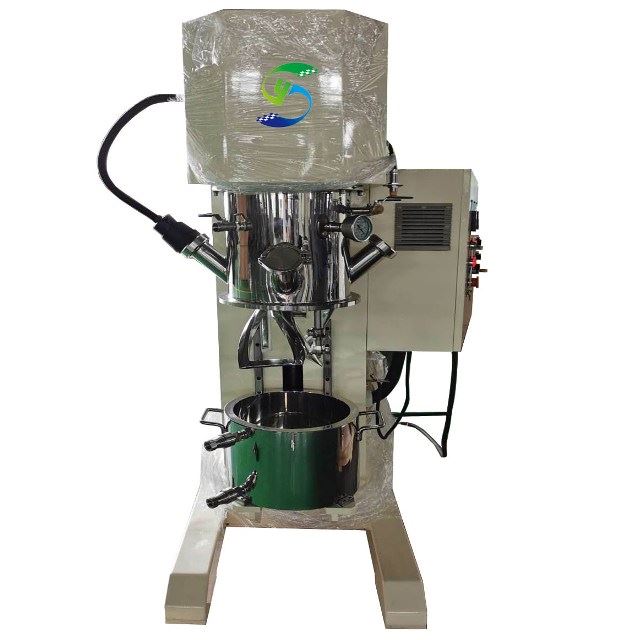

Ntsia Hlau Lift Adhesive Mixing Planetary Tov Khoom
Qinhuangdao Yunshun yog lub Hoobkas ntawm kev sib xyaw tshuab hauv Suav teb, uas muaj ntau tshaj 25 xyoo kev paub. Zoo siab paub tias koj tab tom cuam tshuam nrog Sealants / Adhesives / Glue ua lag luam, tej zaum yuav xav tau ntawm dispersing mixing tshuab. Peb ua ntau lub tshuab sib tov / dispersing. Rau qhov sib txawv viscosity, yuav muaj lub tshuab sib xyaw uas haum tshaj plaws.
Rau lub siab viscosity sealants / Adhesive / Glue (ntau tshaj 10,000CPS), peb qhia koj lub Screw nqa nplaum sib tov planetary tov khoom.
Ob chav planetary mixer tshuab yog tsim los ntawm kev sib xyaw ua ke, lub thoob slurry, thiab lub tshuab nqa; kev sib xyaw ua ke siv lub cev muaj zog raws li lub zog, thiab ob chav agitation tig rov qab thiab tib lub sijhawm los ntawm qhov sib txawv ntawm qhov ceev; qhov sib tov ceev tuaj yeem hloov pauv ceev ceev tswj; lub tshuab nqus tsev foob yog tso rau qhov chaw ua haujlwm ntawm qhov sib tov Qhov chaw ntawm qhov sib tov, ces muab khi thiab sib tov;
Cov lus piav qhia ntawm cov ntsia hlau nqa planetary tov khoom
1 High liner ceev, mus txog 23M / s.
2. Tsawg suab nrov, ib meter deb suab nrov< 80="">
3. Siab sealing. Peb txheej ntawm mechanical sealing nrog rau muag muag thiab tawv sealing.
4. Tsawg clearance (---- 1500L) Clearance ntawm stirrer thiab stirrer: 2--7mm,
5. Clearance ntawm Stirrer thiab hlab ntsha phab ntsa: 2--7mm, Stirrer thiab hlab ntsha hauv qab: 2-6mm.
6. Siab siv. Kev ntsuas nruj nruj, haum rau high-viscosity khoom sib xyaw.
7. Kev sib koom ua ke siab. Premixing, sib tov, hloov thiab lim cov txheej txheem yog ceev-assembly hom seamless docking.
Qauv → | 2L | 5L | 10L | 15L |
Tank ua haujlwm Peev xwm (L) | 3L | 5L | 10L | 15L |
Tank Design Loj (L) | 3L | 7L | 14L | 18L |
Tank Loj (mm) | 180*120 | 1250*150 | 300*200 | 300*250 |
Revolution Tsav (Kw) | 0.75 | 1.5 | 2.2 | 2.2 |
Kev hloov pauv ceev (rpm) | 0-51 | 0-51 | 0-48 | 0-48 |
Mix Speed (rpm) | 0-112 | 0-104 | 0-100 | 0-100 |
Disperse Motom (Kw) | 0.75 | 1.5 | 2.2 | 2.2 |
Disperse Ceev (rpm) | 0-9500 | 0-9500 | 0-7000 | 0-7000 |
Disperse phaj linear Velocity(m/s) | 0-23 | |||
Qhov hnyav (Kg) | 303 | 420 | 550 | 570 |
Kev ntsuas (mm) | 1100*660*1300 | 1250*770*1500 | 1350*800*1750 | 1350*800*1800 |
Ntau Hom Hniav Ntawm Ntsia Hlau Nqa Planetary Tov Khoom Machinery
